We have applied Casted SiC to make liners for desanding systems. The novelty material which is characteristic of high wear resistance (both chemical erosion and mechanical wearing) and low weight, has reduced tremendous down-time for repair and maintenance. We have experience to make such liners in a range of shapes and sizes: hydrocyclones, inlets, cones ect. with OD ranging 50~800mm and Length 100~2000mm.
Here is the life-time contrast of Casted SiC vs Duplex Stainless Steel (Duplex SS), Stellite Alloy (SA) and 4101 Tool Steel (4101 CS):

Liners for Desanding Application

Conpressor Vessel   SiC Inlet Set

We have applied Casted SiC to make liners for desanding systems. The novelty material which is characteristic of high wear resistance (both chemical erosion and mechanical wearing) and low weight, has reduced tremendous down-time for repair and maintenance. We have experience to make such liners in a range of shapes and sizes: hydrocyclones, inlets, cones ect. with OD ranging 50~800mm and Length 100~2000mm.

Desander Cyclone into Cyclone Mounting Plate No. Mateiral Density (g/cm3) Hardness （HV）  Strong Acid Alkli 1 Casted SiC 3.01 2000 III 2 Duplex SS 2205 7.8 《320 II 3 Stellite Alloy 6 8.46 396 II 4 4101 TS 7.81 220 I Excellent:  III             Good:  II             Ordinary: I

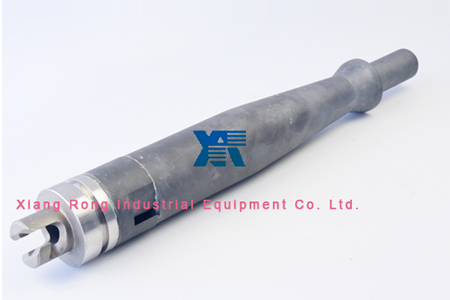

SiC Liner SiC Liner Assembly
